Serial Number Annotation ​

Serial number annotation can annotate sequences in the image, which is very useful for scenarios that need to indicate operation order, path, chronological order, etc.

Usage ​

1. Click the serial number annotation button in the toolbar.
2. Click the left mouse button on the image to create a serial number.
3. Click the left mouse button in a new place to create the next serial number.

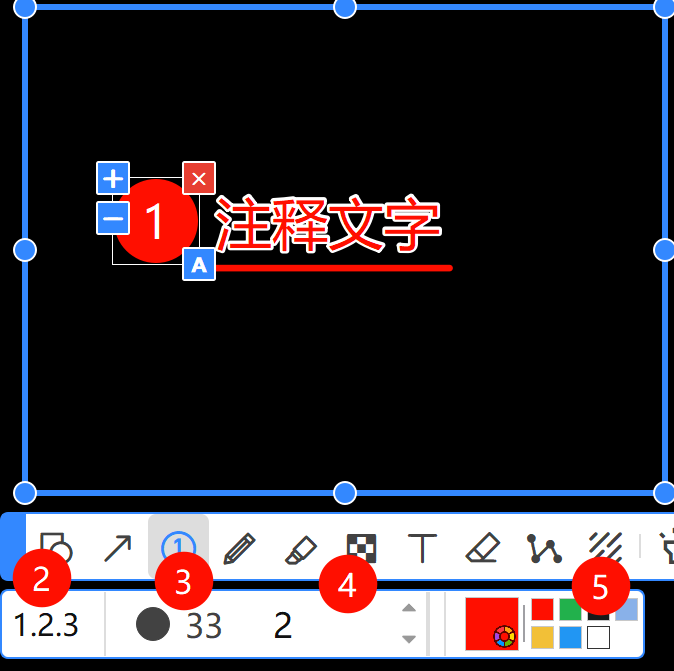

Tool Interface ​

1. Serial Number Control Buttons
   • +: Increase serial number
   • -: Decrease serial number
   • ×: Clear serial number
   • A: Add text comment (Shortcut is A key)
2. Serial Number Type: Supports numbers, letters, Roman numerals
   • Numbers: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10...
   • Letters: A, B, C, D, E, F, G, H, I, J...
   • Roman Numerals: I, II, III, IV, V, VI, VII, VIII, IX, X...
3. Serial Number Size, can be controlled by the mouse wheel
4. Set the next new serial number
5. Serial Number Color
